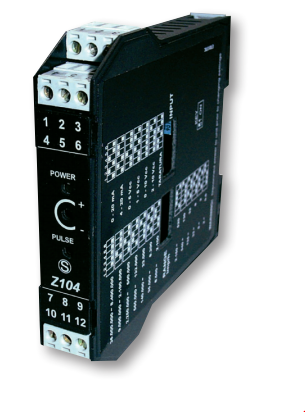

DC to Frequency Isolator/Converter - Z104

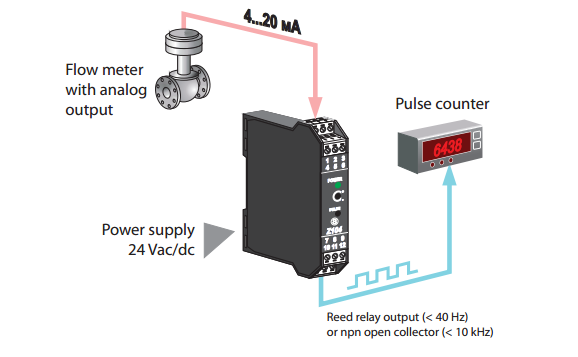

Z104 allows a conversion of the current or voltage
a series of pulses with constant duration.
General Data
- Power supply: 19..40 Vdc / 19..28 Vac / 50-60 Hz
- Power consumption: 2,5 W
- Isolation: 1.500 Vac (3 way)
- Transducer Power Supply : Yes
- Status Indicators: Power supply, error, data transmission, data reception, input status
- Settings: Dip- switches EASY_Z109 (PC software)
- Mounting: 35 mm DIN rail guide
- Protection: Degree IP20
- Operating Temperature: 0..+50 °C
- Dimension (W x H x D): 17.5 x 100 x 112 mm
- Accuracy: 0,1%
- Response time: 35 ms (11 bit)..140 ms (16 bit)
Input
- Channel Numbers 1
-
Voltage: 4 scales: 0..5, 1..5, 0..10, 2..10 V
Min load impedance: 1.000 Ω -
Current: 2 scales: 0/4..20 mA (active/passive)
Max load resistance: 600 Ω
Output
- Channel Numbers 1
-
Pulse: Transistor npn open-collector 30 Vcc 300 mA.
Reed-relè 30 Vac/dc 100 mA.
Max frequency 10 KHz
Standard
- Approval CE
-
Norms: EN 50081-2; EN 55011; EN 50082-2;
EN 61000-2-2/4; EN50140/141; EN 61010-1
