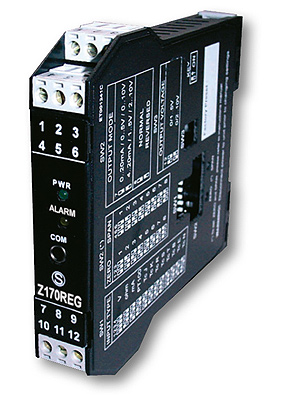

Z170REG - DC Duplicator / Isolator With Universal Input And 2 Output
Z170REG allows to convert and duplicate an analog signal (mA, V, PT100, Pt1000, Pt500, Ni100, TCs, Ohm)
by 2 indipendents outputs (mA or V). It disposes also of dip switches to set the available input/output ranges.
The auxiliary power supply allows also an active or passive connections on the output side.
A 4-way galvanic isolation among Power supply // input // output1 // output2 circuits assures the integrity of your datas.
Product Information
| Description: | DC duplicator / isolator with universal input and 2 output | |
| Power Supply: | 10-40 Vdc; 19..28 Vac | |
| Power Transducer: | Yes, current input (max 17 V) | |
| Isolation: | 1,5 kVac | |
| Input: |
Nr 1 channel, voltage range (0..10 V), current (0..20 mA) with active/passive connection, potentiometer |
|
| Output: | Nr 2 independent channel, voltage range (0..10 V); current (0..20 mA) with active/passive connection | |
| Accuracy: | 0,1% | |
| Operating temperature: | -10..+65°C | |
| Dimension (wxhxd): | 100 x 112 x 17,5 mm |
