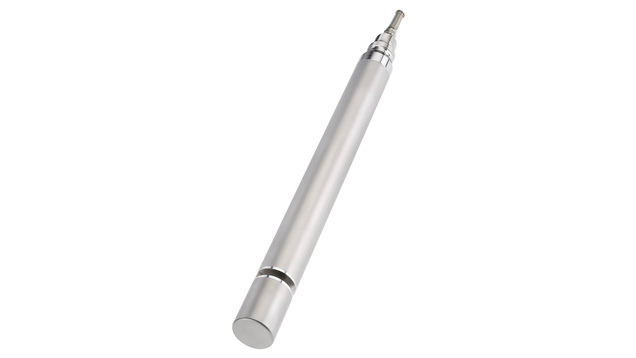

ViomaxCAS51D - Memosens Sensor For Optical Nitrate Or SAC Measurement







MemosensSensor For Optical Nitrate Or SAC Measurement In Water, Wastewater And Utilities.





Viomax CAS51D is a smart sensor that allows unattended operation in a wide range of
process conditions. Just immerse it into your process and measure. The sensor's unique
design is extremely robust and it is also low-maintenance thanks to its self-cleaning functionality.
With Memosens digital technology, CAS51D combines maximum process and data integrity with
simple operation. It enables lab calibration and simplifies predictive maintenance.





Benefits

  • Cost-effective and environmentally friendly measuring method

  • No complex sampling and sample conditioning

  • Chemical-free measurement

  • Ready for application through factory calibration

  • Early, fast and complete detection of load gaps

  • Extremely long maintenance intervals thanks to automatic air cleaning



Field of application

  • Monitoring and control of water treatment plants

  • Monitoring of surface waters

  • Nitrate measurement
    - in water bodies
    - in the outlet of wastewater treatment plants
    - in the aeration basin
    - Monitoring and optimization of denitrification stages

  • SAC measurement
    - Organic load in the inlet and outlet of wastewater treatment plants
    - Monitoring of discharges
    - Organic load in drinking water
    - Determination of CODeq or TOCeq







Technical information

Measuring Principle UV photometric
Characteristic Insitu (immersion in process), extractive with sample and flow cell Optical photometric sensor for nitrate and SAC
Size ca. 390 mm x 40 mm
Design 40 mm sensor, stainless steel stainless steel 316L
Process temperature 5 ... 50°C / 41 -120°F
Ambient temperature -20 ... 60°C / -4 - 140°F
Specials G1, NPT3/4 IP68 (1m/3,3ft) water column with 1N KCl during 60d ays
Application Drinking water, biological waste wate process, WWTP effluent
Monitoring of surface water
Measurement range 0,01..10 mg/l / 0,1 ..50 mg/l NO3-N
0,04..80 mg/l / 0,4..200 mg/l NO3
0,1..50 1/m / 0,5..250 1/m / 1,5..700 1/m SAC
0,15..75 mg/l / 0,75..370 mg/l / 2,5..1000 mg/l COD(254nm)
0,06..30 mg/l / 0,3..150 mg/l / 0,9..410 mg/l TOC(254nm)
