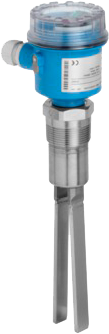

Vibronic point level detection- Soliphant FTM50
Universal point level switch for fine-grained bulk solids also for explosion-hazardous areas
Soliphant M is a robust point level switch for use in silos containing fine-grained or powdery solids
even with a low bulk density. Suitable for a wide range of applications with international certificates
for use in dust or gas incendive hazardous areas. Available with polished fork and stainless steel
housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use
in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk
Benefits
-
SIL2 in accordance with IEC 61508
-
No mechanically moving parts: no wear, long operating life
-
Insensitive to external vibrations and build-up: maintenance-free operation, independent of bulk solids
-
Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
-
Build-up and abrasion display selectable Density setting and switching delay selectable
-
Choice of coated or polished sensor
-
Market leader in the area of level detection of bulk solids with practical experience since 1967
Field of application
Point level switch for fine grained solids and powder.
-
Process connections: threads, flanges and hygienic connection (Tri-Clamp)
-
Temperature: -50 to +280°C (-60 to +540°F)
-
Pressure: -1 to +25bar (-14.5 to +360psi)
-
Sensor length: 145mm, 200mm
-
Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
-
International explosion protection certificates
Technical information
| Measuring Principle | Vibration Solids | |
| Characteristic / Application |
Point level switch for fine grained solids and powder Fork sensor Universal No calibration required Not affected by build up or external vibration Robust Switch value visible from outside Compact |
|
| Supply / Communication |
10-55V DC PNP 3-wire 19-253V AC 2-wire 19...253V AC / 19V...55V DC 2 relay contact 8/16mA NAMUR PFM |
|
| Ambient temperature |
-50°C ... 70°C (-60°F ... 160 °F) |
|
| Process temperature |
-50°C ... 280°C (-60°F ... 540°F) |
|
| Process pressure absolute / max. overpressure limit |
Vacuum ... 25 bar (Vacuum ... 360 psi) |
|
| Min. density of medium | 10 g/l (8 g/l on request) | |
| Main wetted parts |
selectible: 316L 3,2um 316L 0,8um 316L PTFE coated (to avoid build-up) 316L ETFE coated (to avoid corrosion) |
|
| Process connection |
Thread R 1 1/2" 1 1/4" NPT 1 1/2" NPT EN Flange DN50...DN100 ASME Flange 2"...4" JIS Flange 50A...100A |
|
| Process connection hygienic |
Tri-Clamp ISO2852 |
|
| Sensor length |
Standard: 200mm (8") Short: 145mm (5.7") |
|
| Output |
DC PNP 2-wire AC Thyristor DPDT relay 8/16mA NAMUR PFM |
|
| Certificates / Approvals |
ATEX, FM, CSA, IECEx, TIIS, NEPSI, INMETRO SIL |
|
| Options |
Glass cover Temperature spacer EN10204-3.1 |
|
| Specialities |
Build-up and corrosion detection Remote version 3 temperature versions available SIL 2 |
|
| Application limits | Grain size > 10mm (0.4") | |
| Components |
PFM: FTL325P, FTL375P NAMUR: FTL325N, FTL375N |
|
