Soliswitch FTE30 - Point Level Switch For Bulk Solids







Simple mechanical mechanism, extremely robust and cost-effective
point level switch for bulk solids

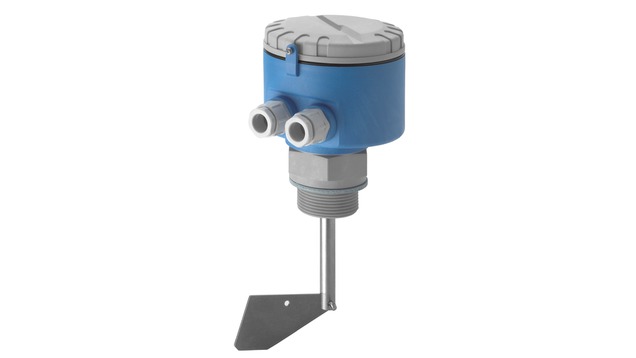

The economical Soliswitch FTE30 is a paddle switch for point level detection in bulk materials.
Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand
alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and
therefore suitable for use in dust explosive areas.



Benefits

  • Reliable and economical paddle switch with Zone 20 Ex certification

  • Highest safety standard for dust-explosion-hazardous areas

  • Diverse instrument designs for use under different application conditions

  • Slip clutch prevents impact on paddle

  • Ingress protection to IP65 for optimum safety in the process





Field of application

  • Process connections: G 1½", PBT; G 1½", 1.4305; Reinforced shaft G 1½", 1.4305

  • Sensor length: Different standard lengths between 100mm (4") and 600mm (24"),
    additional rope length of 2,000mm (80") (can be shortened)

  • Temperature: -20 to +80°C (-4 to +170°F)

  • Pressure: 0.5 to 1.8bar (7 to 25psi)

  • Certification dust Ex Zone 20, ATEX 1/3D IP65 T110°C





Technical information

Measuring Principle Paddle
Characteristic / Application universally applicable
as a full, empty and demand alarm on silos containing solids
Supply / Communication 230 VAC 50/60 Hz
115 VAC 50/60 Hz
48 VAC 50/60 Hz
24 VAC 50/60 Hz
20 bis 28 VDC
Ambient temperature -20 °C ... 60 °C
(-4 °F ... 140 °F)
Process temperature -20 °C ... 80 °C
(-4 °F ... 170 °F)
Process pressure absolute / max. overpressure limit 0.5 bar to 1.8 bar
(7 psi to 25 psi)
Min. density of medium >= 100 g/l
Main wetted parts Shaft: 1.4305
Paddle: 1.4301
Process connection G 1 1/2", PBT
G 1 1/2", 1.4305
Reinforced shaft G 1 1/2", 1.4305
Sensor length 100 mm (4")
200 mm (8")
300 mm (12")
400 mm (16")
500 mm (20")
600 mm (24")
Rope length of approx 2000 mm (80"), can be shortened
Output Micro switch with changeover contact max. 10 A/250 VAC
Certificates / Approvals Certification dust Ex Zone 20
ATEX 1/3D IP65 T110 °C
Options Relay
Specialities Hinged paddle
Application limits max. grain size 50 mm (2")



Click here to download the PDF file.

Click here to download Technical Information

Click here to download Operating Instruction
