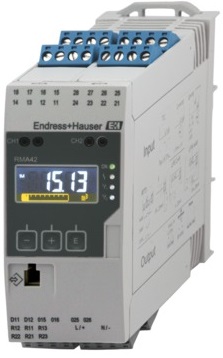

RMA42 - Process Transmitter With Control Unit
Analog measured values are indictated, evaluated and calculated by
the process transmitter. With the integrated loop power supply two-wire
sensors can be powered. The universal inputs enable the connection of current,
voltage, RTDs and TCs. Limit values can be monitored and relays can be switched.
Via analog outputs process signals can be forwarded. The integrated application package
"differential pressure" allows the quick and easy commissioning for differential pressure applications.
Benefits
-
SIL 2 approval (optional)
1 or 2 calculated values and linearization table
Min./max. value saved
5-digit 7-segment LC display, backlit
1 or 2 universal inputs
2 relays (optional)
Digital status output (Open Collector)
Field of application
The RMA42 process transmitter exhibits a display, analog inputs for process
and status signals, analog and digital outputs, and an interface for configuration.
Connected sensors can be powered by the integrated LPS. All measured and calculated
values are available as a signal source for display, outputs, relays and the interface.
-
Plant and apparatus engineering
Control rooms and cabinets
Process control, recording and supervision
Signal adjustment and conversion
Overfill protection (WHG)
Technical information
| Measuring Principle | Resistance Temperature Detector | |
| Function | Universal process and temperature transmitter with control unit | |
| Certification |
ATEX FM NEPSI CSA CSA GP UL GL KTA German WHG overfill protection |
|
| Input | 2 x universal (current, voltage, R, RTD, TC, resistance) | |
| Output | 2 x Analog (current, voltage) | |
| Relay output |
2 x relay 1 x open collector |
|
| Auxiliary power supply / Loop power supply | 24 V intrinsically safe loop power supply | |
| Dimensions (wxhxd) |
45 x 115 x 118 mm (1.77" x 4.53" x 4.65") |
|
| Software |
Internal software for calculations, linearization, limit monitoring Monitoring of sensor wires according NAMUR NE43 Application package differential pressure measurement |
|
| Operation |
On site via 3 buttons PC configuration via FieldCare |
|
| Display |
LCD 7 segment Multicolour Bargraph TAG unit Colour change in case of failure |
|
| Operating Voltage | 20-250V AC/DC wide range power supply | |
