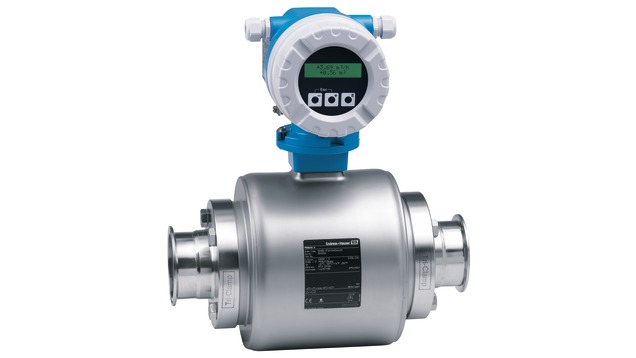

Proline Promag 10H - Electromagnetic Flowmeter

Promag H is the preferred sensor for applications with highest
requirements in the food and beverage and life science industries.
Combined with the Promag 10 transmitter for basic applications
and direct integration, Promag 10H offers accurate measurement
of liquids for a wide range of applications. It will be the preferred
solution for costumers aiming for minimized cost of ownership.
Promag 10H is available in a compact or remote version.

Benefits

• Flexible installation concept – numerous hygienic process connections

  Energy-saving flow measurement – no pressure loss due to cross-section
  constriction
  Cost-effective – designed for easy applications and direct integration
  Safe operation – display provides easy readable process information
  Fully industry compliant – IEC/EN/NAMUR

Field of application

Electromagnetic flowmeter for bidirectional measurement of liquids with
a minimum conductivity of ≥ 50 μS/cm

• Beverages, e.g. fruit juice, beer, wine

  Dairy products, fruit juice mixes
  Saline solutions
  Acids, alkalis, etc.

• Flow measurement up to 4700 dm³/min (1250 gal/min)

  Fluid temperature up to +150 °C (+302 °F)
  Process pressures up to 40 bar (580 psi)
  CIP-/SIP cleaning
