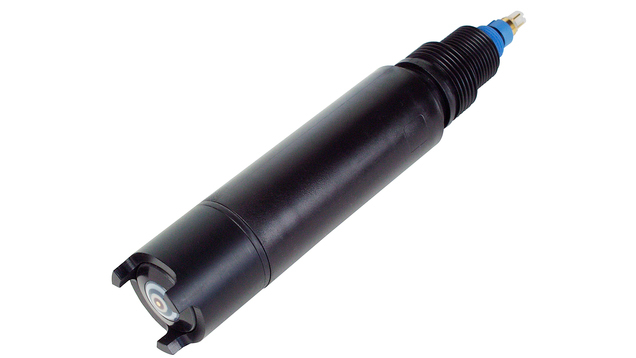

Oxymax COS41 - Dissolved Oxygen Sensor


Benefits:

  • High measurement accuracy
  • Long maintenance intervals
  • Minimum calibration effort thanks to simple air calibration

Applications:

  • Sewage treatment plants: Oxygen measurement and regulation in the activated sludge basin for a highly efficient biological cleaning process
  • Water monitoring: Oxygen measurement in rivers, lakes or seas as an indicator of the water quality
  • Water treatment: Oxygen measurement for status monitoring of drinking water (oxygen enrichment, corrosion protection, etc.)
  • Fish farming: Oxygen measurement and regulation for optimum living and growth conditions

Technical  Information:

  • Measuring Principle : Sensor Oxygen
  • Application: Aeration tank, river monitoring, water treatment, fish farming.
  • Characteristic: Amperometric 2-electrode system to measure dissolved oxygen.
  • Measurement range: 0,05 - 20mg/l
  • Measuring principle: Closed (membrane covered) amperometric 2-electrode sensor.
  • Design:
    - Extreme stable membrane
    - Analog communication
  • Material: Sensor body : POMMembrane cap : POM
  • Dimension:
    - Diameter : 40mm (1.56inch)
    - Length : 220mm (8.85inch)
  • Process temperature: max. 50°C (122°F)
  • Process pressure: max. 10bar (145psi)
  • Temperature sensor: Integrated NTC-sensor
  • Process connection : G1"Cable : Fixed cable or TOP68 connector
