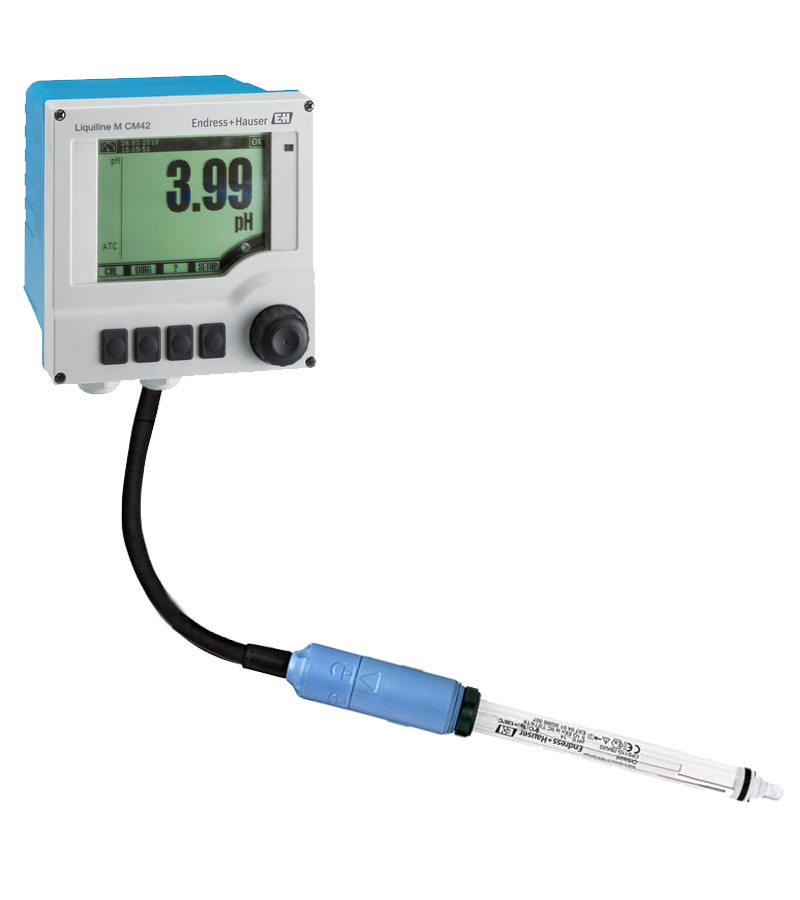

Orbisint CPS11D - Memosens Glass Electrode For Standard Applications
Orbisint CPS11D is the digital all-rounder for process and environmental technology.
It measures reliably even in highly alkaline media or hazardous areas.
Designed for low maintenance and a long operating life, the electrode offers you best value for money.
Thanks to Memosens digital technology, CPS11D combines maximum process and data integrity
with simple operation. It resists corrosion and moisture, enables lab calibration and facilitates predictive
maintenance.
Benefits
-
Robust electrode requiring low maintenance due to large, dirt-repellent PTFE ring diaphragm
-
Certified biocompatibility
-
Long service life due to double junction reference system and thus long electrode poison diffusion path
-
Process glass for highly alkaline applications available
-
Application under pressures of up to 16 bar (232 psi)
-
Maximum process safety through no-contact inductive signal transmission
-
Easy handling due to storage of sensor-specific data
Field of application
-
Long-term monitoring and limit monitoring of processes with stable process conditions:
- Paper industry
- Plastics chemistry
- Power plants (e.g. flue gas washers)
- Incineration plants
- Food industry
- Breweries -
Water treatment:
- Drinking water
- Cooling water
- Well water
The electrode can be applied in hazardous areas.
Technical information
| Measuring Principle | Glass electrode | |
| Application | Standard applications in process and environment. Long-term monitoring, processes with little change. | |
| Characteristic | Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available. | |
| Measurement range | pH 0-14 | |
| Measuring principle | Gel compact electrode with PTFE ring-diaphragm. | |
| Design | - all shaft lengths with temperature sensor, advanced gel technology - digital electrode with Memosens technology | |
| Material | Glass / PTFE | |
| Dimension |
Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm (4.68, 8.77, 14.04 and 16,57 inch) |
|
| Process temperature | max. 135°C (274°F) | |
| Process pressure | max. 16 bar (230 psi) | |
| temperature sensor | NTC 30k | |
| Ex certification |
ATEX FM CSA |
|
| Connection | Inductive, digital connection head with Memosens technology. | |
| Ingres protection | IP68 | |
| Additional Certifications | Also available as Biocompatibility certified SIL version. | |
