Off Grid Solar System
250Wp POLY SOLAR PANEL GRADE A Aesthetic appearance with excellent
efficiency based on innovative photovoltalic technologiesStrong frame,passing
mechanical load test of 5400Pa,instead of the normal2400Pa,to withstand
heavier snow load and higher wind-pressure
-
Maximum Power at STC (Pamx): 250W
- Optimum Operating Voltage (Vmp): 36.2V
- Optimum Operating Current (Imp): 6.907A
- Open-Circuit Voltage (Voc): 44.2V
- Short-Circuit Current (Isc): 7.643A
- Solar Cell Efficiency (%): 15.80
- Solar Module Efficiency (%): 14.07
- Operating Temperature: -40to85℃
- Maximum System Voltage: DC1000
- Maximum Series Fuse Rating: 15A
- Power Tolerance: +/-3%
- Solar cell: Poly-Crystalline 156*143mm
- No.of cells: 72(6×12)
- Dimensions: 1790mm*992mm*45mm
- Weight: 20.5kg
- Front glass: 3.2mm tempered glass
- Frame: Anodized aluminium alloy
- Junction box: PV-YH0906
- Connector: Plug and socket(MC Ⅳ)
- Output cables: PV cable,0.9m
48V Solar PWM Controller charger LCD
- Size (mm): 150*135*63
- Weight: 1.15Kg
- Operating temperature: -25°C to 60°C
- System Voltage: 48V
- Solar Input Voltage: 100V
- Protection Degree: IP 30

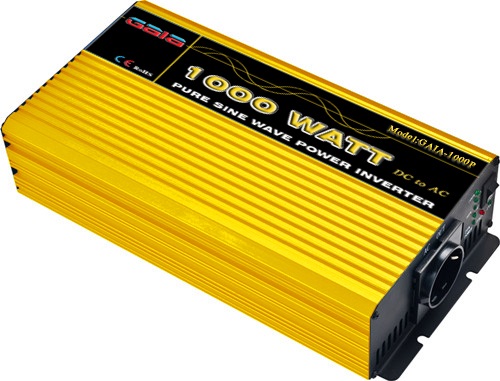

Pure Sine Wave Power Inverters
- DC Input Voltage: 48V
- AC Output Voltage: 220VAC
- AC Output Frequency: 50Hz / 60Hz
- AC Output Wave Form: Pure Sine Wave
- No Load Current: < 1.4A
- Converting Max. Efficiency: > 92%
- DC Input Voltage Range: 40V~60V
- Input Low-Voltage Alarm: 41.0V±0.5V
- Input Under-voltage Cut-Off Voltage: 40.0V±0.5V
- Input Over-voltage Cut-Off Voltage: 60.0V±0.5V
- Operating temperature: -20°C to 40°C
