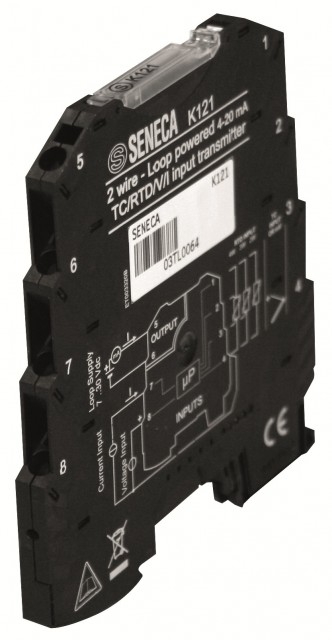

K121 - Loop Powered Isolator / Universal Converter


Specifications
  • Power supply: 7..30 Vdc
  • Power consumption: < 660 mW
  • Isolation: 1.500 Vac (2 way)
  • Transducer power supply: No
  • Accuracy: 0,1%
  • Response time: About 140 ms
  • Status indicators: Power supply, error
  • Setting: EASY LP (PC software)
  • Mounting: 35 mm DIN rail guide
    • Protection degree: IP20
    • Operating temperature: -20..+65 °C
    • Dimension (W x H x d): 6,2 x 93 x 102,5 mm


      Input
      • Channel numbers: 1
      • Voltage: -150…+150 mV (input imped. 10 MΩ), -30...+30V (input imped. 200KΩ)
        • Current: -24..24 mA, input impedance 40Ω
        • RTD: Pt100, Pt500, Pt1000, Ni100 / measure 2, 3, 4 wires
        • Thermocouple: Type J, K, R, S, T, E, B, N
        • Potentiometer: 500 Ω ..10 KΩ


        Output
        • Channel numbers: 1
        • Current: 4…20mA (loop powered)
