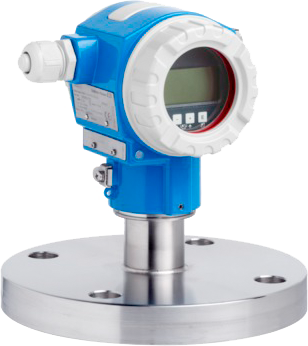

Deltapilot FMB70 - Hydrostatic Level measurement

The Deltapilot FMB70with the condensate resistant Contite measuring cell
and two-chamber housing is typically used in the process and hygienic applications.
It is made for level measurement in liquid and paste-like media in open or closed
containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT
data module makes management of process and device parameters easy. Designed according
to IEC 61508 for use in SIL3 safety systems.

Benefits

  • Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.1%, optionally ±0.075% and minimum temperature effects thanks to active temperature compensation

  • Best batch-to-batch repeatability and long-term stability

  • Modular concept for easy replacement of display or electronics

  • HistoROM/M-DAT data backup for instrument settings and measured values

  • Function-monitored from the measuring cell to the electronics

  • Seamless and independent system integration (HART/PA/FF)

  • International usage thanks to a wide range of approvals



Field of application

For level and/or pressure measurement.

  • Process connections: Threads, flanges and hygienic connections

  • Temperature: –10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)

  • Measuring range: 0.1 to 10 bar rel. (1.5 to 150 psi)

  • Accuracy: ±0.075%

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals

Features and specifications



Measuring Principle Hydrostatic
Characteristic / Application Pressure transmitter for pressure or hydrostatic level measurement with flush mounted metallic CONTITE measuring cell:
- hermetically welded
- absolute condensation tight
- climate-resitant
- long-term stable
- Lowest temperature influences

Compact version Modular Deviceplatform
Supply / Communication 4...20mA HART:
10,5...45V DC
Ex ia: 10,5...30V DC
PROFIBUS PA /
FOUNDATION Fieldbus:
9...32V DC (Non Ex)
Accuracy Standard 0,1%
Optional 0,075%
Long term stability 0,05% of URL/year
Ambient temperature -40°C...85°C
(-40°F...185°F)
Process temperature -10°C...100°C
(14°F...212°F)
Process pressure absolute / max. overpressure limit 40 bar (600 psi)
Pressure measuring range 100mbar...10bar
(1.5psi...150psi)
Main wetted parts Alloy C
316L
Process connection Thread:
G1 1/2, MNPT1/2
Flange:
DN40...DN100,
ASME 1 1/2"...4",
JIS 10K
Process connection hygienic Tri-Clamp
DIN11851
DIN11864-1
NEUMO
Varivent N
SMS
DRD
Max. measurement distance 100m (328ft) H2O
Output 4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / Approvals ATEX, FM, CSA C/US, IEC Ex, TIIS, NEPSI, INMETRO
Overfill prevention WHG
SIL
EN10204-3.1
3A, EHEDG
CoC ASME-BPE

Options HistoROM/M-Dat
4-line digital display
SS- or Aluminiumhousing

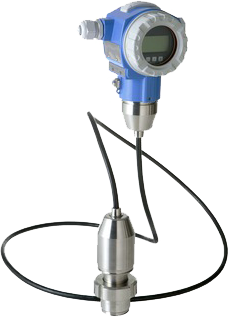

Separate housing
Specialities Diagnostic functions
Application limits Measuring cell: Contite, condensate-proof, watertight, metal welded
If pressurized, possibly use differential pressure measurement with two pressure transmitters. Observe ratio head pressure : hydrostatic pressure
