Fieldgate FXA520 - Gateway For Remote Monitoring And Diagnosis

Fieldgate FXA520 was developed for remote monitoring of field deviceswith HART or 4 to 20mA interface,
regardless of location. GPRS technology is used for wireless communication via the worldwide GSM mobile
communications network. In addition, Fieldgate FXA520 can be used as a HART/Ethernet gateway in local networks. Fieldgate FXA520 contains an integrated web server offering data logging and alarm management functions.

Benefits

• Simple configuration of Fieldgate, easy visualization of measured values via its integrated web server
• Monitoring of HART / 4 to 20mA field devices regardless of location with XML data transfer allows simple processing of the measured data
• Supporting communication interfaces Ethernet as well as GSM/GPRS
• Intrinsically safe version EEx ia IIC for applications in hazardous areas, applicable in 4 to 20mA SIL2 loops (IEC 61508)
• Visualization of up to four HART measured values per device
• Optional enhancement of inputs (4 to 20mA or digital) via input module FXZ520 (max. 28 measurement inputs)

Field of application

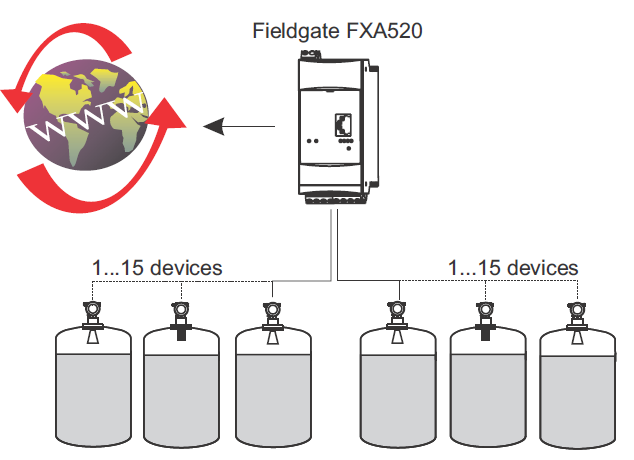

For remote monitoring of connected HART / 4 to 20mA analog, as well as digital field devices, optionally
via Ethernet TCP/IP or mobile communications (GSM/GPRS).

• Remote diagnosis and remote parameterization of connected HART field devices
• For applications in which remote measuring points have to be sporadically analyzed
• Configurable monitoring of limit values with alarm signaling via e-mail or SMS
• Two HART and two 4 to 20mA inputs
