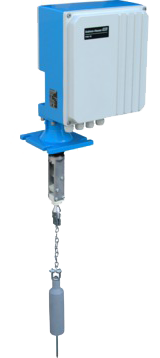

Silopilot FMM50 - Electromechanical Level measurement

Silopilot FMM50 is an electromechanical level system. Depending on the sensing
weight, the level can be measured in bins or silos with dusty, fine-grained or
coarse-grained bulk solids or in tanks with liquids.

Benefits

• High reliability level measurement of powdery, fine-grained or coarse-grained bulk solids

• Safe measurements in extremely dusty environments

• Fully electronic digital minimum fail-safe control, therefore no running down of the sensor
  weight into the silo outlet and no risk to the conveying systems

• Quick menu-guided local operation using a 4-line text display

• High performance three-phase engine (traction power up to 500N) using a single-phase supply
  voltage by employment of a converter, therefore simple electric supply

• Optional design with certification for application in areas subject to dust explosion hazard zones
  20, 21 and 22 (measuring zone) or zones 21 and 22 (device zone), category 1/2D

Field of application

For level measurement in bunkers or silos for dusty, fine or coarse-grained bulk products, or in tanks containing liquids.

• Process connection: Flange

• Temperature: -40 to +230°C (-40 to +446°F)

• Pressure: 0.8 to 3bar (11.6 to 43.5psi)

• Measuring range: 70m (230ft)

• Accuracy: ±5cm (1.97")

• International explosion protection certificates

Features and specifications
