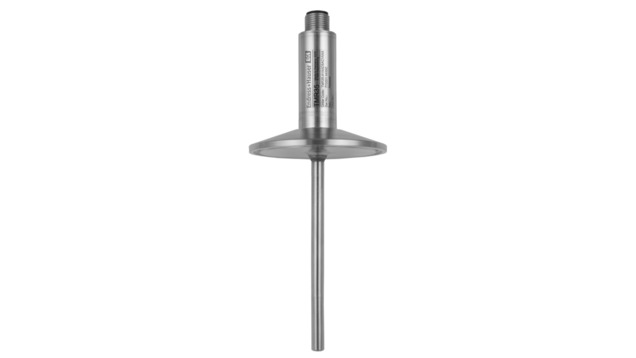

EasyTempTMR35 - Hygienic Compact Thermometer





With cost efficiency, optimal use of space, reliable operation, easy commissioning
and hygienic design the TMR35 fulfills all the requirements in the Food & Beverage
as well as in the Life Science industries.A variety of hygienic process connections
leads to a high flexibility.





Benefits

  • Small, compact design made entirely of stainless steel
  • Extremely short response times
  • Highly accurate even with short insertion lengths
  • 4-wire, Pt100 or PC-programmable transmitter with 4 to 20 mA output
  • Configuration and visualization with ReadWin® 2000 PC operating software,
    which is free of charge
  • Breakdown information in event of sensor break or sensor short-circuit,
    adjustable as per NAMUR NE43
  • Hygienic compatible design with 3-A marking and EHEDG certification





Field of application

The Easytemp TMR35 compact thermometers are used to measure temperatures
from -50 °C to +150 °C (-58 °F to +302 °F), or up to +200 °C (+392 °F) with neck.

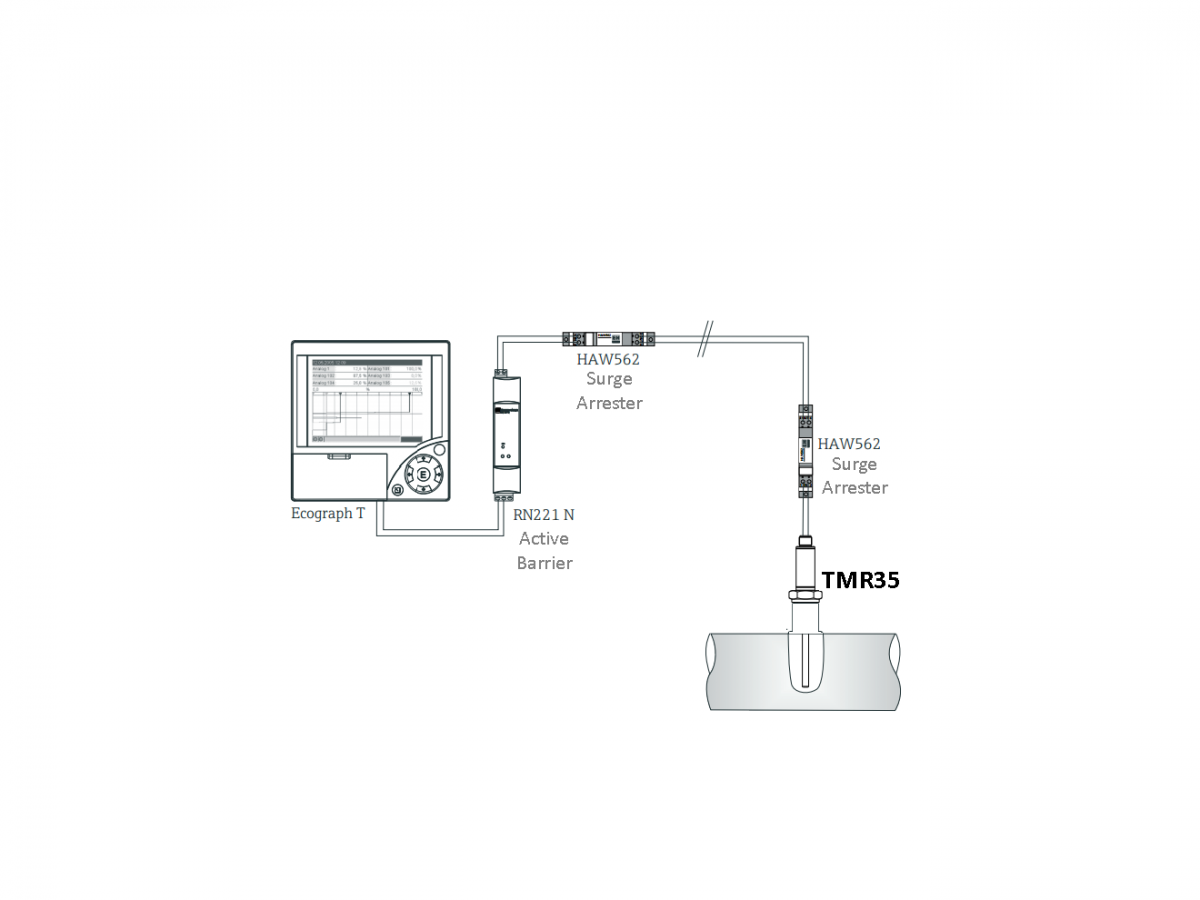

The most common installation locations are tanks and pipes.

Technical information

Thermometer

Measuring Principle Resistance Temperature Detector
Characteristic / Application metric style
compact temperature probe
fast response time
hygienic design
hygienic process connection
with or without neck
Thermowell / protection tube without (not intended to use with thermowell)
Insert / probe mineral insulated (MI), flexible
Outer diameter protection tube 3,0 mm (0,12'')
6,0 mm (0,24'')
Max. immersion length on request up to 600,00 mm (23,62'')
Material protection tube/thermowell 1.4404 (316L)
Process connection hygienic:
conical sealing system G1/2" (metal)
clamp connections acc. to ISO 2852 / DIN 32676
screwed pipe joint acc. to DIN 11851
Varivent
Tip shape straight
Surface roughness Ra 0,4 μm (15,7 μin.)
0,8 μm (31,5 μin.)
Operating temperature range PT 100:
-50 °C ...200 °C
(-58 °F ...392 °F)
Max. process pressure (static) at 20 °C: 100 bar (1.450 psi)
Accuracy class A acc. to IEC 60751
Response time t50 = 1 s
t90 = 2 s
Integration head transmitter no
Certification 3A
German Lloyd (GL) - marine approval
UL 3111-1
