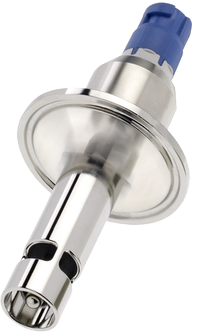

Digital conductivity sensor - Condumax CLS16D



Condumax CLS16D is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product qualitiy. Numerous certificates and various hygienic process connections ensure the perfect fit for your process. With Memosens technology,CLS16D combines maximum process and data integrity with simple operation. It resists corrosion and

moisture, enables lab calibration, and facilitates predictive maintenance.

Benefits

  • High measuring accuracy as cell constant is individually measured

  • Hygienic process connections for installation in pipes or flow chambers

  • Easy to clean thanks to electro-polished measuring surfaces

  • Can be sterilized up to 150 °C (302 °F)

  • Quality certificate stating the individual cell constant

  • Stainless steel 1.4435 (AISI 316L), meets the highest demands of the pharmaceutical industry



Field of application

Measurement in pure and ultrapure water:

  • Monitoring ion exchangers

  • Reverse osmosis

  • Distillation

  • Electro-deionizing

  • WFI (Water for Injection) in the pharmaceutical industry

The cell constant k of the sensor is 0.1 cm-1. The measuring range reaches from 0.04 to 500 μS/cm.

With ATEX approval for application in hazardous areas.



Technical information

Conductivity
Measuring Principle Conductive
Application Pharmaceuticals, pure and ultrapure water
Characteristic Hygienic 2-electrode conductivity sensor
Measurement range k=0,1: 0,04µS/cm - 500µS/cm
Measuring principle Conductiv conductivity cell
Design Hygienic 2-electrode conductivity sensor made of stainless steel and FDA sealing material; sterilizable
Material Isolation: PEEK
Electrode: polished stainless steel 1.4435
Sealing: Isolast (FFKM) FDA conform
Dimension Electrode diameter: 17 mm
(0.66 inch)
Electrode length: 54 mm
( 2.10 inch)
Process temperature Max. 100°C (140°C/30 min)
max. 212°F (284°F/30 min.)
Process pressure max. 12 bar at 20°C
max.174 psi at 68°F
temperature sensor NTC
Connection Process connection: Varivent, Neumo, Clamp
Cable: Memosens connector
Ingres protection IP68
Additional Certifications roughness Ra<0,8 (0,4)- Material certification 3.1. - EHEDG, pharma certificate of compliance
