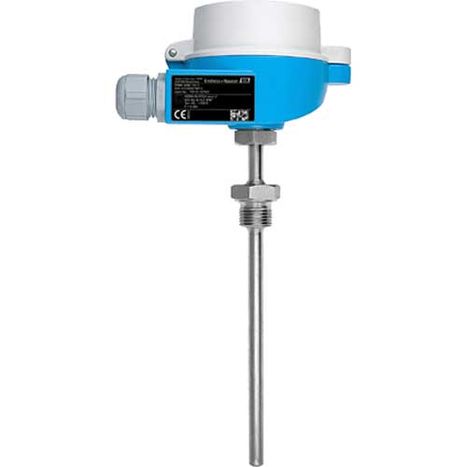

Omnigrad T TR24-RTD Temperature Sensor
Measuring Principle: Resistance Temperature Detector
Product description:
- Modular RTD assembly
- Threaded or weld-in compression fitting
-
High degree of flexibility thanks to modular design with standard terminal
heads as per DIN EN 50446 and customer-specific immersion lengths - High degree of insert compatibility and design as per DIN 43772
- Fast response time with reduced tip form depending on configuration
- Accuracy and reliability compared to directly wired sensors
- Types of protection for use in hazardous locations:
- -Intrinsic Safety (Ex ia)
- -Non-Sparking (Ex nA)
Head transmitters:
- All Endress+Hauser transmitters are available with enhanced accuracy, reliability and cost effectiveness compared to directly wired sensors.
- Easy customizing by choosing one of the following outputs and protocols:
- Analog output 4...20 mA
- HART®
- PROFIBUS® PA
- FOUNDATION Fieldbus™
Field of application:
- Universal range of application
- Measuring range: -200...600 °C (-328...1112 °F)
- Pressure range up to 50 bar (725 psi)
- Degree of protection: up to IP 68
- Outer diameter protection tube: 3,0 mm...6,0 mm
- Max. immersion length on request up to 10.000 mm
