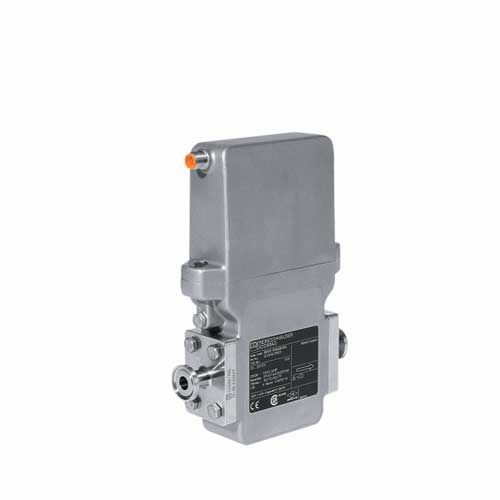

Dosimag 5BH-Electromagnetic Flowmeter
Electromagnetic Flow Measuring System
Volume flow meter for measurement of conductive liquids in filling applications, compact design
Your benefits:
-
Dosimag guarantees the highest level of accuracy and repeatability even for short measuring times.
The compact housing shape means the units can be arranged very close together in filling plants.
Uniform operating concept using the "ToF Tool - Fieldtool Package" operating software:
- Graphic display of measured values for detailed trend analysis and optimization of the filling process
- Complete plant documentation with device configuration and filling diagrams can be created
The Dosimag flowmeter offers:
- Simple installation and commissioning
- Insensitivity to pipe vibrations
Field of application:
- Electromagnetic flowmeter for measuring in filling applications.
- Flow up to 1.66 l/s
- Fluid temperature up to +130 °C (+266 °F)
- Process pressures up to 16 bar (232 psi)
- CIP/SIP cleanable
- Stainless steel housing
All liquids with a conductivity of ≥5 μS/cm can be measured in the following sectors for example:
- Food industry
- Cosmetics industry
- Pharmaceuticals industry
-
Chemicals industry
Approvals in the food industry/hygiene sector:
- 3-A approval, EHEDG-tested, in conformity with FDA
Technical information:
- Nominal diameter range DN 04...15 DN 5/32"...1/2"
- Max. measured error: ±0.2% (1...4m/s), ±0.5%, ±5% without calibration
- Max. process pressure: PN16
- Degree of protection: IP67 NEMA4X
- Outputs: Pulse / Status
- Hazardous area approvals: FM/CSA General Purpose
